Sawdust Pulse Tube Air Dryer Starch Rice Flour Drying Equipment
Product Description
QG series pulse air dryer is a large batch of drying equipment. It adopts the principle of instantaneous drying. It uses the rapid movement of hot air to drive the wet material and suspends the wet material in the hot air. This strengthens the whole drying process and improves The rate of heat and mass transfer, the material dried by the airflow, the non-bonded moisture can be almost completely removed (for example, the moisture content of starch and other materials is less than or equal to 40%, the finished material can be 13.5%), and the dried material No deterioration will occur, and the output can be significantly improved compared to the drying of general dryers. Users can achieve higher economic benefits in the short term.
Application scope
The company manufactures and manufactures QG air-flow drying equipment, introduces advanced technology equipments from the United States, and has been uniquely designed to reach world-class advanced level. This product has high automation, low investment, low energy consumption, and occupies manpower and factory area. Less common and widely used, it is the ideal modern equipment.
Product Features
QG air dryer is suitable for drying and dehumidifying powdery materials in the pharmaceutical, chemical, food, building materials, plastic and other industries. For example: starch, fish meal, salt, distiller's grains, feed, gluten, plastic resin, mineral powder, pulverized coal , Chloronic acid, A · S · C simple butyric acid, 2 · 3 · acid, polychloroacetic acid polypropylene, sodium sulfate, sodium metabisulfite and other materials drying.
Our company consulted with the air drying equipment and designed and manufactured the non-fixed air dryer.
Technical specifications
| Specifications | QG-50 | QG-100 | QG-250 | QG-500 | QG-1500 |
| Water evaporation | kg/h | 50 | 100 | 250 | 500 | 1500 |
| air filter | area(m2) | 4 | 6 | 18 | 36 | 60 |
| | Number of units | 1 | 1 | 1 | 2 | 2 |
| | Replacement time(h) | 200(Filter bag) | 200(Filter bag) | 200(Filter bag) | 200(Filter bag) | 200(Filter bag) |
| Heater | area(m2) | 30 | 43 | 186 | 365 | 940 |
| | Steam consumption(kg) | 120 | 235 | 450 | 972 | 2430 |
| | Work pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Ventilator | model | 9-19-4.5 | 9-26-4.5 | 9-19-9 | 9-19-9 | 9-26-6.3 |
| | Number of units | 1 | 1 | 1 | 2 | 4 |
| | power(kw) | 7.5 | 11 | 18.5 | 37 | 125 |
| Feeder | Throughput(kg/h) | 150 | 290 | 725 | 1740 | 4350 |
| | way to control | Electromagnetic speed regulating motor | Electromagnetic speed regulating motor | Electromagnetic speed regulating motor | Electromagnetic speed regulating motor | Electromagnetic speed regulating motor |
| | power(kw) | 0.6 | 1.1 | 3 | 3 | 7.5 |
| Cyclone separator | model | CLK-350-400 | CLK-500-450 | ZF12.5 | ZF12.5 | |
| | effectiveness(%) | 98 | 98 | 98 | 98 | |
| | Quantity | 2 | 2 | 2 | 3 | |
| Bag filter | Quantity | 1 | 1 | 1 | 1 | 1 |
| | Water Consumption | 3.6-20.0 |
Packing & Delivery
Contract Us
Product Tags:
|
|

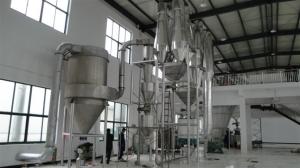

Sawdust Pulse Tube Starch Rice Drying Equipment 220V-450V Flour Drying Machine Images
|
